Editing a Project

There are two ways to get to the Project Wizard. The first way is to navigate to the project selection page. From here, click on the 3 dot menu on the right of the project of interest, and select Edit Project

Edit a project from project selection

The second is from the project overview page. From here, you can click Edit project and the Project Wizard will open.

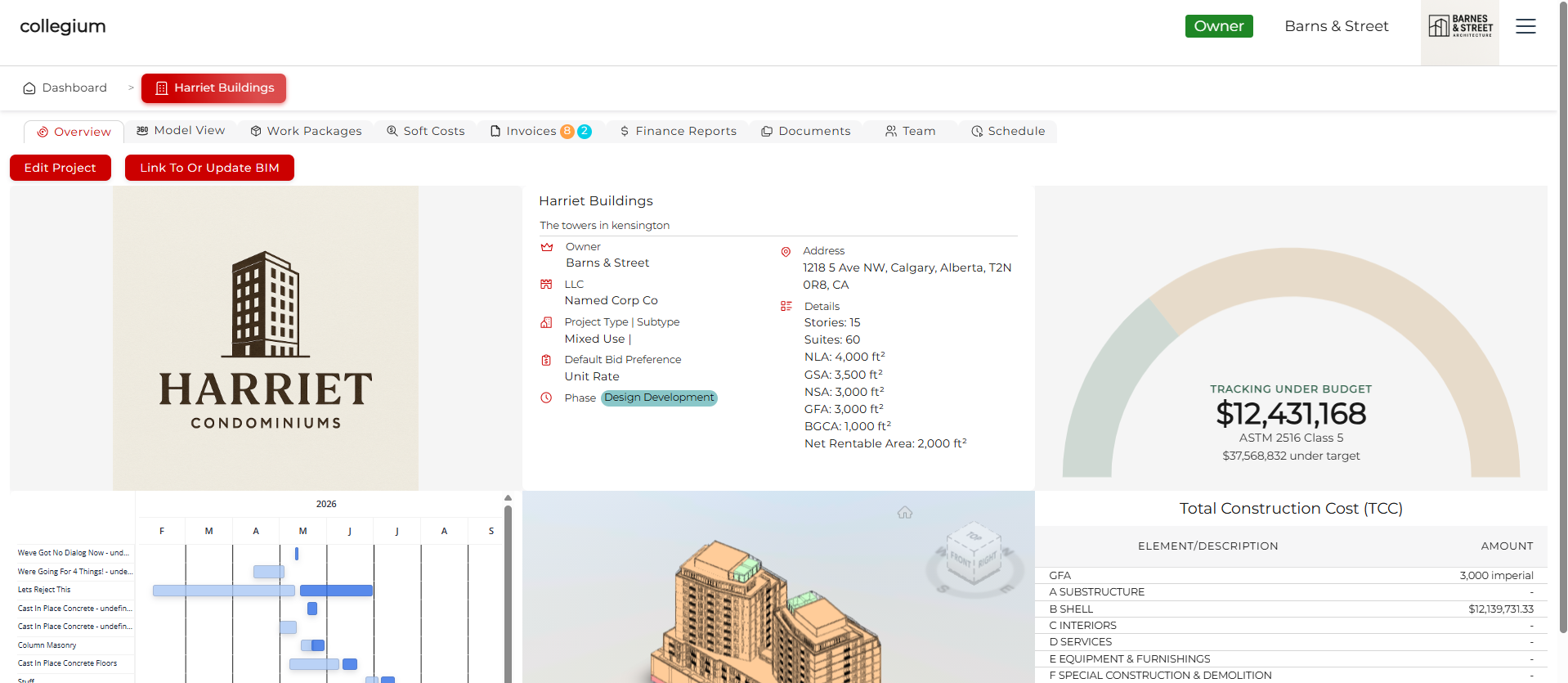

Edit a project from project overview

Step 1: Review the basic project information​

On the Details page, there are lots of basic details to review. Required fields are highlighted in red.

  • Project Title: What the project should be called.
  • Project LLC Company Name: Very likely, each project will be set up as its own company to prevent risk spreading between business endeavours. This is where we document that.
  • Model Last Published: Don't worry, this gets populated when you link a project to a BIM.
  • Model Last Synched with Collegium: As above
  • Project Type: select whether it is commercial, residential etc.
  • Project Subtype: New build, renovation, or addition to existing building.
  • Project Phase: Where are we in the development process? Are we still figuring it out, or are we actively building?
  • Budget: How much is it expected to cost.
  • Classification of Budget: How certain are we of the budget? Class 1-5.
  • Project Description: A short blurb about the project and what makes it attractive.
  • Upload Project Image: You can either drag the image directly on, or click here and navigate to the image. Then click confirm upload to finalise.

Review, make any changes, and click next.

Project Description

Step 2: Options & Units​

The second page of the Project Wizard. Here you can:

  • Select a Steward: Pick from a list of active stewards.
  • Bid Format Options: Lump sum or Unit Rate. Default is Unit Rate, and it's strongly encouraged that we keep it that way.
  • Make Project Private: Private or not?
  • Make Project Bidding Public: The whole point of a project is to tender the work required to build it. This sets the default for the Work Package Wizard. Do you want it to be closed, invite-only bidding, or open to anyone.
  • Net Land Area: How much physical land does the project occupy?
  • Gross Site Area: How much land are you actually going to use?
  • Net Site Area: How much land will actually be occupied?
  • Gross Building Area: Calculated field. The gross construction area + the below ground construction area.
  • GCA/GFA: Gross Construction Area/Gross Floor Area. Two phrases for the same thing. What is the total amount of floor in the building?
  • Net Floor Area: Net floor area, Gross Floor Area - walls etc.
  • BGCA: Below Ground Construction Area. Total floor area below ground. Basements, parking, etc.
  • Floor Area Ratio: Calculated Field. Gross Floor Area / Gross Site Area.
  • Net Rentable Area: How much area is actually available to rent?
  • Percent Efficiency: Calculated Field. Net Rentable Area/Gross Floor Area * 100.
  • Units: Metric or imperial.
  • Number of Stories: How tall is the building?
  • Number of Suites: How many rental units or individual condos in the project.

Project Options & Units

Step 3: Location & Uploads​

Basic Address details. The platform uses the address to generate latitude and longitude, so enter a real, complete address.

Project will have overview documentation that vendors will want to see before bidding. This is one place to upload it. Either drag the document onto the upload icon, or click in the box and navigate to the file/s you want to upload via the file explorer.

Project Location & Uploads

Step 4: Team Onboarding​

Here we add people who will have roles managing the project. Each "type" of person will have different access to different features on the platform. Start at the top and work down, adding relevant people.

The process is the same for each type (Owner Corp, Prime Consultant, etc.) Select a company from the company dropdown, then select the user from the next dropdown. The user list is limited to those who belong the selected company. The owner corp is also allowed to select a representative. You can then add anyone else that needs access from each company.

To add additional corporations, click Add Company then select a different company and representative.

Project Team Onboarding

Step 5: User Permissions​

The final step is to assign roles to the users selected in the previous step. There are several roles available, Senior Management Team (SMT), Project Management Team (PMT), Project Implementation team (PIT), Quantity Surveyor (QS), and View Only. You can select more than one role per user. Small teams may need many roles per user. So give everyone an appropriate role, and when you're done, click Update Project. The changes will be saved in the database.

Project User Permissions
